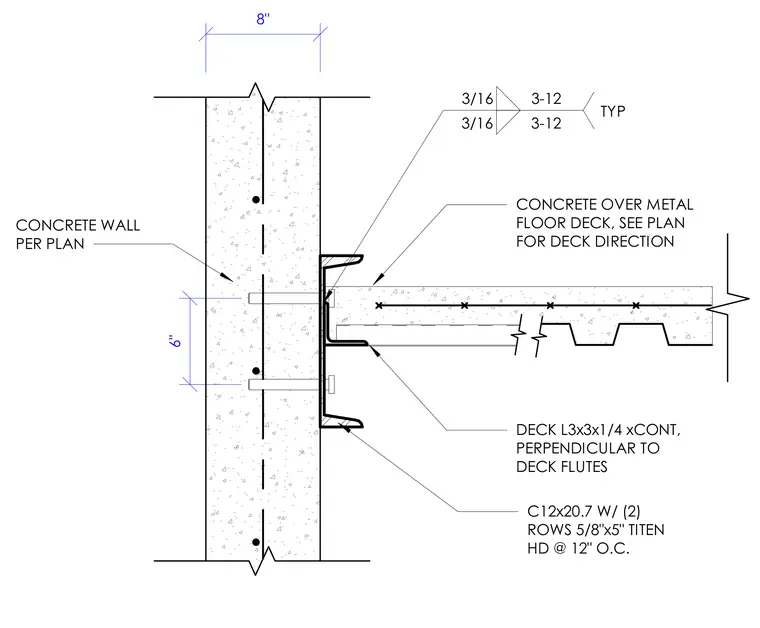

A C12x20.7 channel attaches to a concrete wall using two rows of five-eighths-inch by five-inch Titen HD anchors spaced at twelve inches on center. A continuous L3x3x1/4 angle connects perpendicular to the deck flutes. Concrete over a metal floor deck bears against the assembly with deck direction specified per plan. Three-sixteenths-inch fillet welds secure the channel and angle assembly with three-twelve typical weld sizing and spacing.
C12x20.7 W/ (2) ROWS 5/8"x5" TITEN HD @ 12" O.C. CONCRETE WALL PER PLAN 8" 6" DECK L3x3x1/4 xCONT, PERPENDICULAR TO DECK FLUTES 3/16 3-12 3/16 3-12 TYP CONCRETE OVER METAL FLOOR DECK, SEE PLAN FOR DECK DIRECTION
