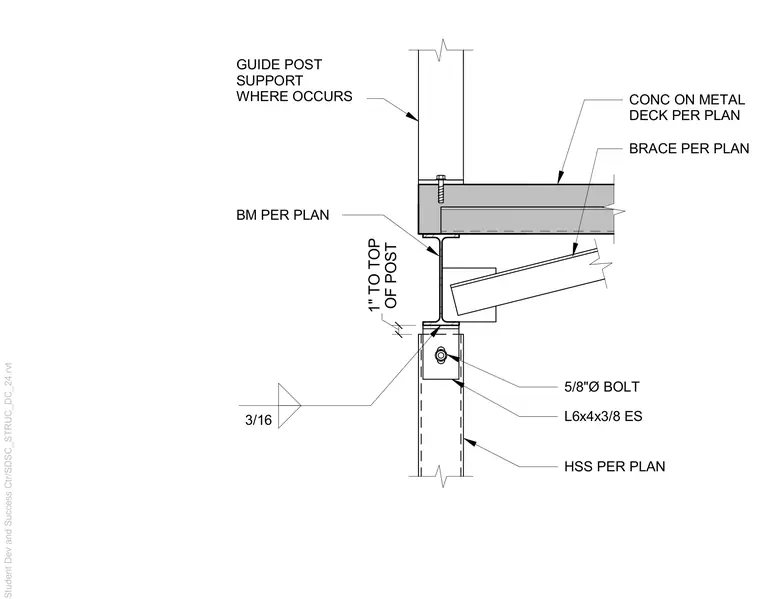

A hollow structural section guide post connects below a wide flange beam supporting a concrete slab on metal deck. An L6x4x3/8 angle bracket is secured to the hollow structural section post using a 5/8-inch diameter bolt. A brace sized per plan frames into the assembly below the beam. A three-sixteenths inch fillet weld secures the connection components with a one-inch clearance maintained to the top of the post.
GUIDE POST SUPPORT WHERE OCCURS OF POST 1" TO TOP CONC ON METAL DECK PER PLAN BRACE PER PLAN L6x4x3/8 ES 5/8"Ø BOLT HSS PER PLAN 3/16 BM PER PLAN
