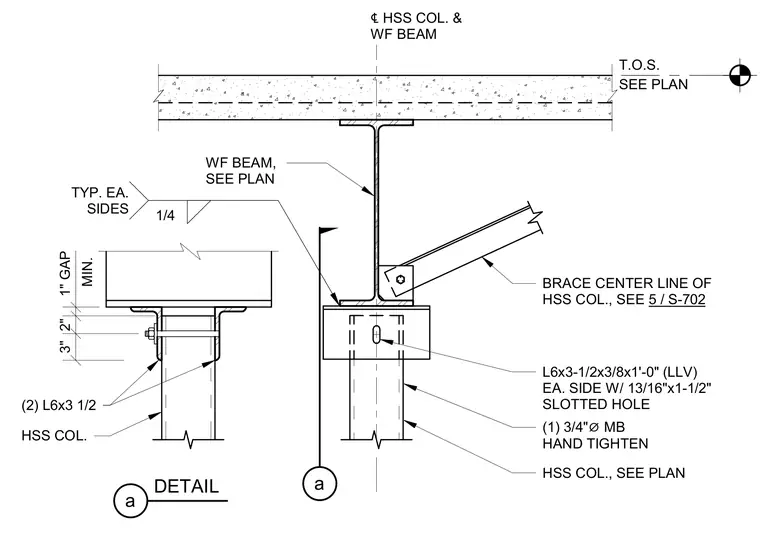

An elevator rail connection at a roof structure integrates a wide-flange beam supported by a hollow structural section column. A structural angle L6x3-1/2x3/8x1'-0" with a 13/16" by 1-1/2" slotted hole is placed on each side, fastened with one 3/4" diameter machine bolt left hand tight. A one-inch gap minimum is maintained at the top assembly. Fillet welds of 1/4" size are applied on typical sides as detailed.
1" GAP 2" 3" MIN. ℄ HSS COL. & WF BEAM (2) L6x3 1/2 T.O.S. SEE PLAN BRACE CENTER LINE OF HSS COL., SEE L6x3-1/2x3/8x1'-0" (LLV) EA. SIDE W/ 13/16"x1-1/2" SLOTTED HOLE (1) 3/4" ⌀ MB HAND TIGHTEN HSS COL., SEE PLAN a WF BEAM, SEE PLAN HSS COL. 1/4 TYP. EA. SIDES DETAIL a 5 / S-702
