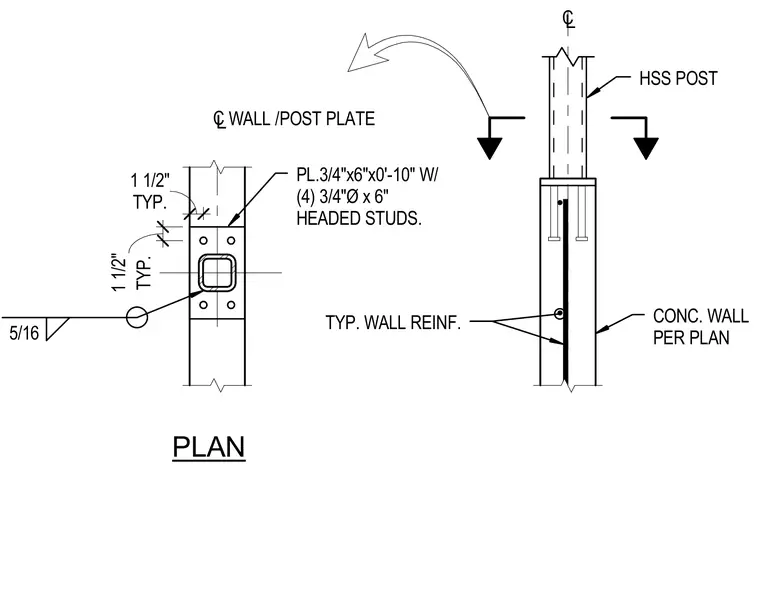

An HSS post connects to a concrete wall through a three-quarter-inch by six-inch by ten-inch embed plate welded with a five-sixteenth-inch fillet weld. The embed plate is anchored into the concrete wall per plan using four three-quarter-inch diameter by six-inch headed studs. Typical wall reinforcement is positioned around the embed assembly according to structural plans.
L C L C WALL /POST PLATE PLAN 5/16 PL.3/4"x6"x0'-10" W/ (4) 3/4"Ø x 6" HEADED STUDS. HSS POST CONC. WALL PER PLAN TYP. WALL REINF. TYP. 1 1/2" TYP. 1 1/2"
