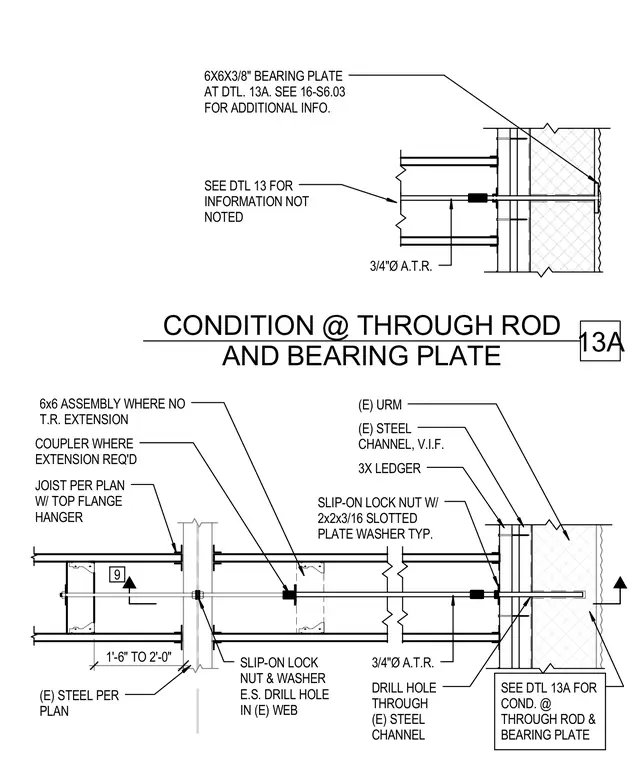

A three-quarter-inch diameter all-threaded rod anchors through an existing unreinforced masonry wall and steel channel to interior steel framing. A 6x6x3/8-inch bearing plate on the exterior face of the wall is secured with slip-on lock nuts and slotted plate washers. A steel channel ledger with drilled holes accommodates the through rod, utilizing couplers where extensions are required. Floor joists are supported per plan with top flange hangers spanning from existing steel members.
JOIST PER PLAN W/ TOP FLANGE HANGER SLIP-ON LOCK NUT W/ 2x2x3/16 SLOTTED PLATE WASHER TYP. (E) URM (E) STEEL CHANNEL, V.I.F. COUPLER WHERE EXTENSION REQ'D (E) STEEL PER PLAN 1'-6" TO 2'-0" 6x6 ASSEMBLY WHERE NO T.R. EXTENSION 9 SLIP-ON LOCK NUT & WASHER E.S. DRILL HOLE IN (E) WEB 3/4"Ø A.T.R. 3X LEDGER DRILL HOLE THROUGH (E) STEEL CHANNEL SEE DTL 13A FOR COND. @ THROUGH ROD & BEARING PLATE SEE DTL 13 FOR INFORMATION NOT NOTED 3/4"Ø A.T.R. 6X6X3/8" BEARING PLATE AT DTL. 13A. SEE 16-S6.03 FOR ADDITIONAL INFO. 13A CONDITION @ THROUGH ROD AND BEARING PLATE
