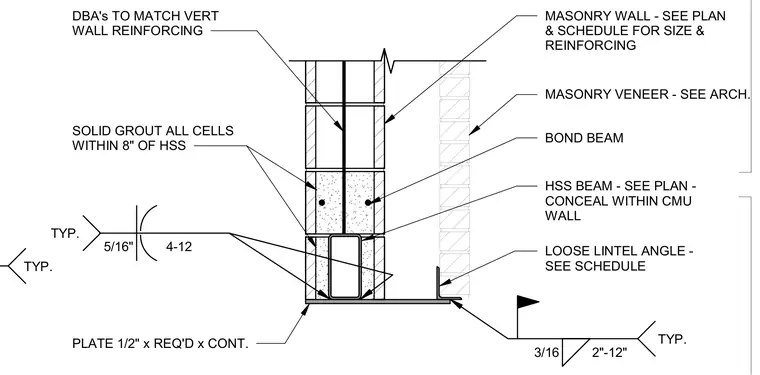

A hollow structural section beam is concealed within a concrete masonry unit wall and supported by a one-half-inch continuous cap plate welded with a typical five-sixteenth-inch fillet weld at four to twelve inches spacing. Dowel bars match the vertical wall reinforcing and all cells within eight inches of the hollow structural section are solid grouted. A loose lintel angle is positioned below the masonry veneer and welded with a typical three-sixteenth-inch fillet weld at two to twelve inches spacing.
TYP. 5/16" 4-12 TYP. MASONRY WALL - SEE PLAN & SCHEDULE FOR SIZE & REINFORCING HSS BEAM - SEE PLAN - CONCEAL WITHIN CMU WALL PLATE 1/2" x REQ'D x CONT. BOND BEAM DBA's TO MATCH VERT WALL REINFORCING SOLID GROUT ALL CELLS WITHIN 8" OF HSS MASONRY VENEER - SEE ARCH. LOOSE LINTEL ANGLE - SEE SCHEDULE 3/16 2"-12" TYP.
