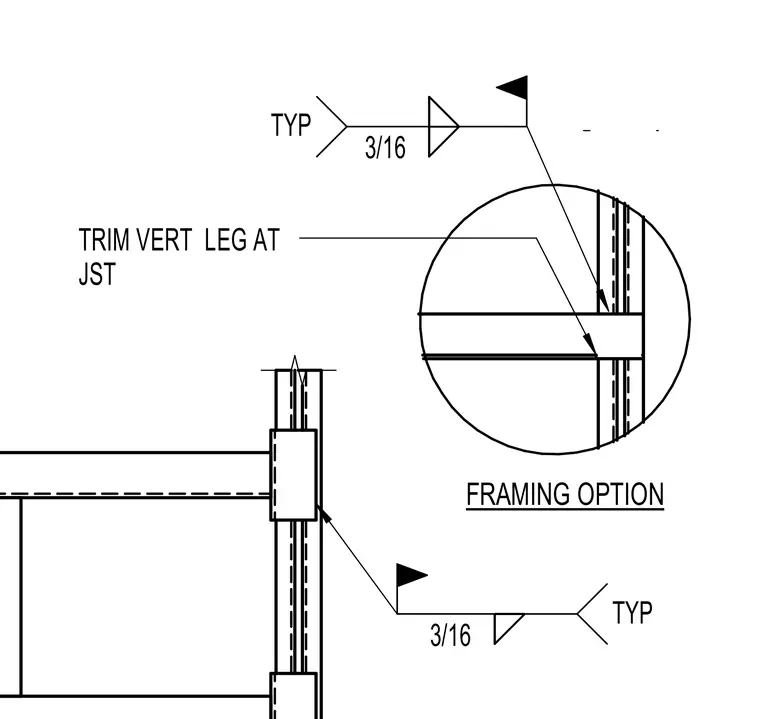

A framing option junction features a vertical leg trimmed at the joist. A typical three-sixteenths inch fillet weld is specified with field weld indicators at the connection points.
