A hollow structural section member connects to a concrete panel using embedded steel plates welded on three sides with a quarter-inch fillet weld. The upper detail utilizes a half-inch by zero-foot-eight-inch by one-foot-zero-inch plate anchored by two three-quarter-inch diameter by six-inch long stud bolts at eight-inch gauge. The lower detail utilizes a half-inch by one-foot-zero-inch by one-foot-eight-inch plate anchored by six three-quarter-inch diameter by six-inch long stud bolts at eight-inch gauge. Both hollow structural section members are sized per plan or elevation.

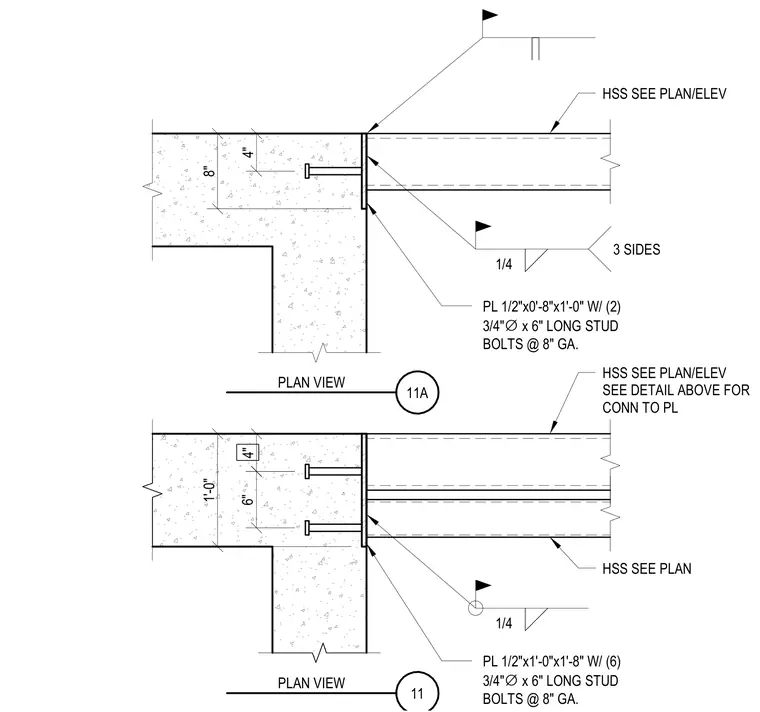

3 SIDES 4" 8" 4" 1'-0" 6" 11 PLAN VIEW 11A PLAN VIEW HSS SEE PLAN/ELEV PL 1/2"x0'-8"x1'-0" W/ (2) 3/4" ∅ x 6" LONG STUD BOLTS @ 8" GA. PL 1/2"x1'-0"x1'-8" W/ (6) 3/4" ∅ x 6" LONG STUD BOLTS @ 8" GA. HSS SEE PLAN/ELEV SEE DETAIL ABOVE FOR CONN TO PL HSS SEE PLAN 1/4 1/4
