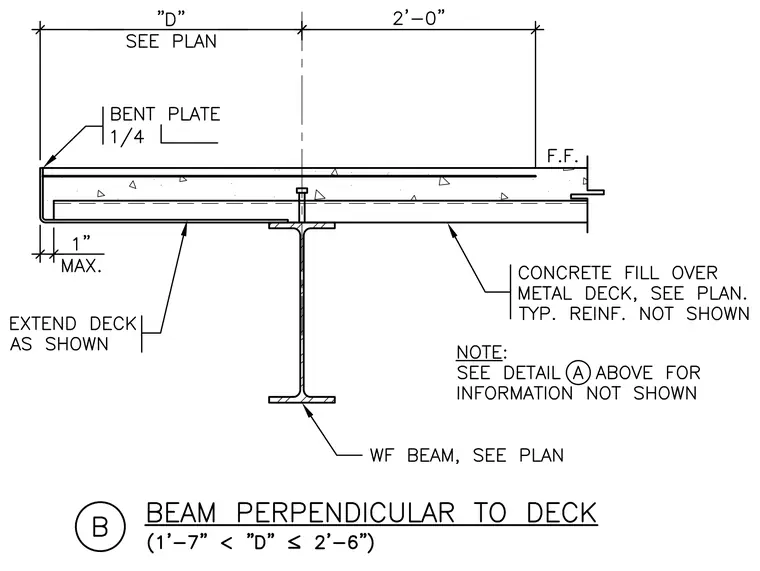

A wide-flange beam supports a concrete fill over metal deck system, with the beam running perpendicular to the deck flutes. A one-quarter-inch bent plate acts as an edge form at the slab perimeter, extending a maximum of one inch. The metal deck is extended as shown on plan, and typical reinforcement is not shown. A headed stud anchor connects the steel beam to the concrete slab. Additional information is referenced from detail A above.
