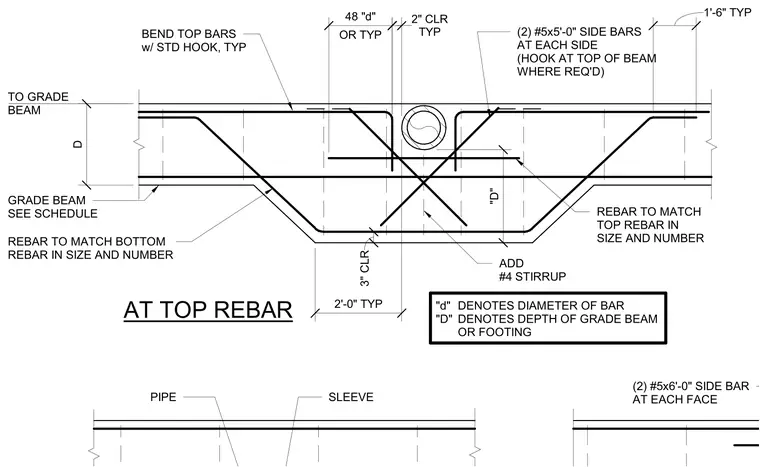

A reinforced concrete grade beam features continuous top and bottom rebar sized per schedule with standard hooks and bend configurations around a pipe sleeve. Two number five by five-foot side bars are placed at each side with hooks at the top of the beam where required, supplemented by additional number four stirrups. Side bars of two number five by six-foot are positioned at each face with specified clearances of three inches and two inches. The detail defines bar diameter as d and depth of grade beam or footing as D, maintaining lap splice lengths proportional to bar diameter.
AT TOP REBAR REBAR TO MATCH BOTTOM REBAR IN SIZE AND NUMBER GRADE BEAM SEE SCHEDULE TO GRADE BEAM SLEEVE PIPE BEND TOP BARS w/ STD HOOK, TYP (2) #5x5'-0" SIDE BARS AT EACH SIDE (HOOK AT TOP OF BEAM WHERE REQ'D) REBAR TO MATCH TOP REBAR IN SIZE AND NUMBER ADD #4 STIRRUP "d" DENOTES DIAMETER OF BAR "D" DENOTES DEPTH OF GRADE BEAM OR FOOTING (2) #5x6'-0" SIDE BAR AT EACH FACE 3" CLR D TYP 2" CLR "D" 2'-0" TYP OR TYP 48 "d" 1'-6" TYP
