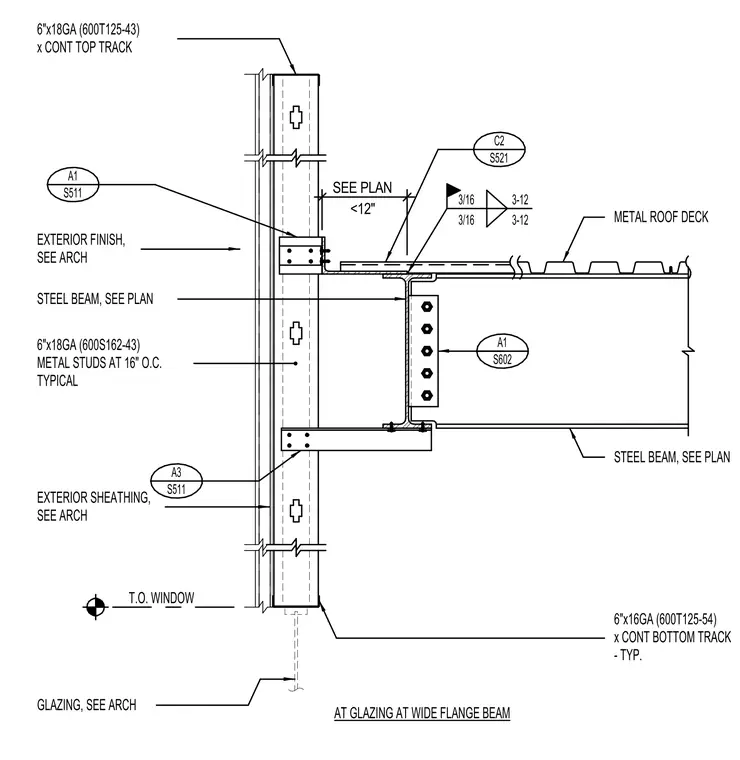

Cold-formed steel studs measuring six inches by eighteen gauge are spaced at sixteen inches on center and bounded by a continuous top track and a continuous bottom track. A structural steel wide flange beam supports a metal roof deck with a horizontal dimension of under twelve inches to the exterior framing. Exterior finishes and sheathing are coordinated per architectural drawings. Window head alignment is referenced to the top of the window elevation.
A1 S602 6"x16GA (600T125-54) x CONT BOTTOM TRACK 6"x18GA (600T125-43) x CONT TOP TRACK 6"x18GA (600S162-43) METAL STUDS AT 16" O.C. TYPICAL EXTERIOR FINISH, SEE ARCH EXTERIOR SHEATHING, SEE ARCH STEEL BEAM, SEE PLAN METAL ROOF DECK 3/16 3/16 GLAZING, SEE ARCH AT GLAZING AT WIDE FLANGE BEAM 3-12 3-12 T.O. WINDOW - TYP. STEEL BEAM, SEE PLAN A1 S511 A3 S511 C2 S521 SEE PLAN <12"
