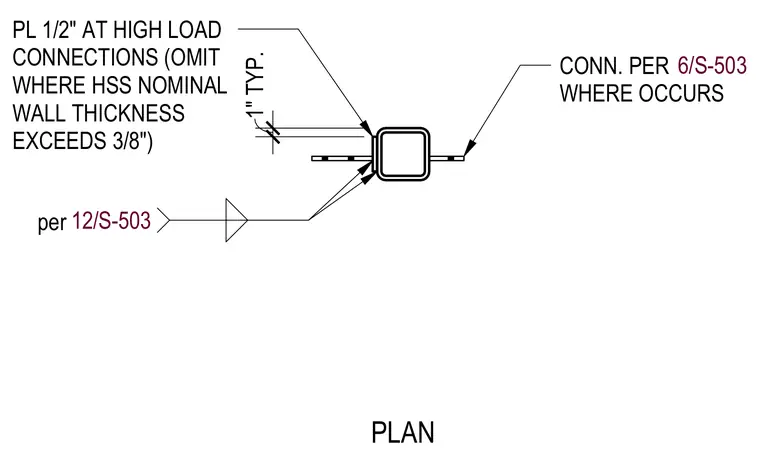

A one-half inch plate is specified at high load connections and is omitted where the hollow structural section nominal wall thickness exceeds three-eighths of an inch. Additional connections and details are referenced per drawings six and twelve on sheet S-503. A one-inch typical dimension is indicated relative to the column face.
per PL 1/2" AT HIGH LOAD CONNECTIONS (OMIT WHERE HSS NOMINAL WALL THICKNESS EXCEEDS 3/8") CONN. PER WHERE OCCURS PLAN 1" TYP. 6/S-503 12/S-503
