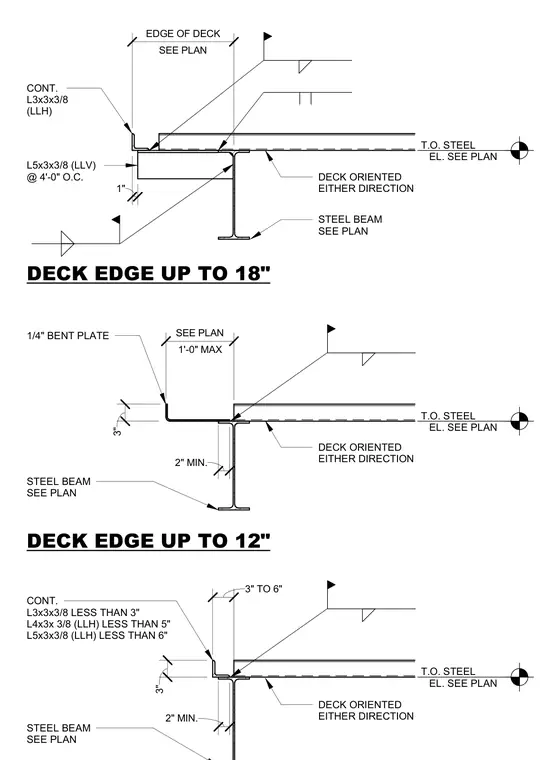

These details show edge of metal roof deck conditions at steel framing with varying overhang distances. The top detail utilizes a continuous angle support L3x3x3/8 with vertical angles spaced at four feet on center. The middle detail incorporates a quarter-inch bent plate creating a three-inch vertical face at the deck edge. The bottom detail applies continuous angles sized from 3x3x3/8 to 5x3x3/8 depending on the overhang dimension. All configurations bear on a structural steel beam sized per plan with top of steel elevations referenced accordingly.
DECK EDGE UP TO 12" DECK EDGE UP TO 18" 3" TO 6" CONT. L3x3x3/8 LESS THAN 3" L4x3x 3/8 (LLH) LESS THAN 5" L5x3x3/8 (LLH) LESS THAN 6" 3" T.O. STEEL EL. SEE PLAN 2" MIN. STEEL BEAM SEE PLAN 1'-0" MAX SEE PLAN 1/4" BENT PLATE T.O. STEEL EL. SEE PLAN 2" MIN. STEEL BEAM SEE PLAN 3" CONT. L3x3x3/8 (LLH) T.O. STEEL EL. SEE PLAN STEEL BEAM SEE PLAN 1" SEE PLAN EDGE OF DECK L5x3x3/8 (LLV) @ 4'-0" O.C. DECK ORIENTED EITHER DIRECTION DECK ORIENTED EITHER DIRECTION DECK ORIENTED EITHER DIRECTION
