Structural · S-WF553

Water Tank Wall and Concrete Slab Connection Details

Materials

Concrete

Elements

Beams Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

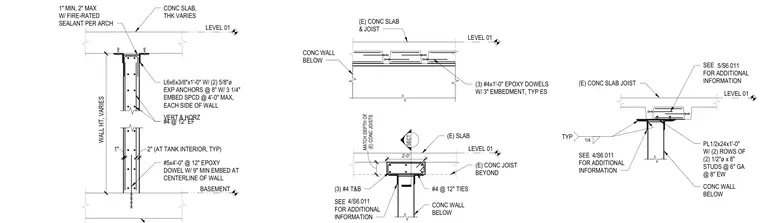

Structural connection between a concrete water tank wall and concrete slabs or joists. The wall is reinforced with vertical and horizontal #4 bars at twelve inches each face, anchored at the base with #5 by four-foot epoxy dowels with a nine-inch minimum embedment. Connection angles such as L6x6x3/8 by one-foot are secured with two five-eighths-inch diameter expansion anchors spaced at eight inches with three and one-quarter inches embedment spaced at four-foot maximum on each side of the wall. Embed plates measuring 1/2 by twenty-four inches by one foot are provided with two rows of two half-inch diameter by eight-inch studs at six-inch gauge at eight inches each way. Additional connections utilize three #4 by one-foot epoxy dowels with three-inch embedment typical each side, along with fire-rated sealant per architectural specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
