Structural · S-WEZFZ

Beam W/ Difference

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection

About this detail

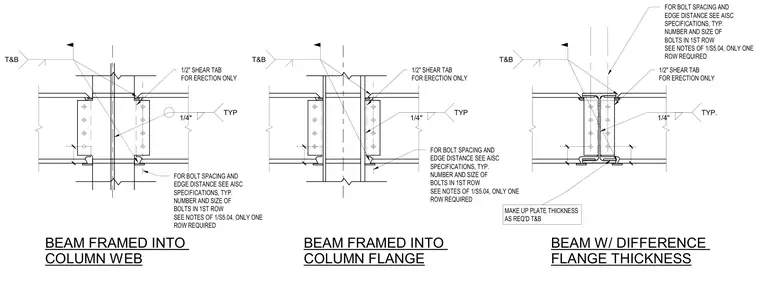

The assembly features steel beams framed into column webs and column flanges with differing flange thicknesses requiring specific bolt spacing and edge distances per AISC specifications. A one-half-inch shear tab is provided for erection purposes only. One-quarter-inch typical top and bottom makeup plates are included to account for thickness variances, along with specific sizing and row requirements for the primary bolts.
