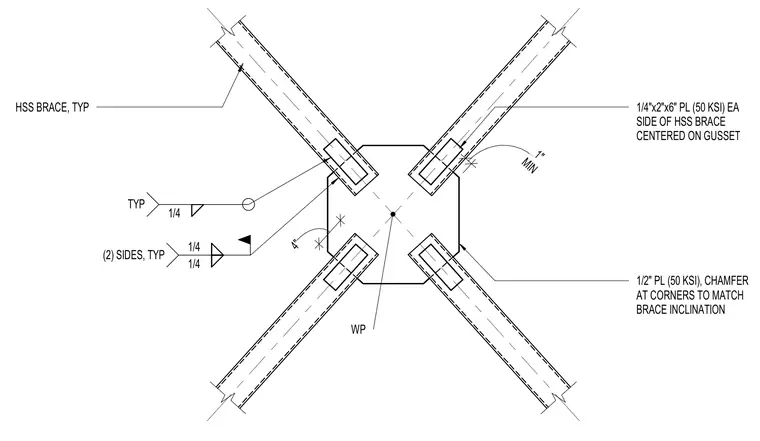

Four hollow structural section braces intersect at a central half-inch thick fifty ksi gusset plate with chamfered corners matching the brace inclination. A quarter-inch by two-inch by six-inch fifty ksi plate is welded to each side of each hollow structural section brace and centered on the gusset plate. Typical fillet welds join the assembly with all-around weld symbols indicated. A minimum one-inch clearance is maintained at the brace ends relative to the work point.
1/4 1/4 (2) SIDES, TYP 1/4 TYP HSS BRACE, TYP 1/4"x2"x6" PL (50 KSI) EA SIDE OF HSS BRACE CENTERED ON GUSSET 1/2" PL (50 KSI), CHAMFER AT CORNERS TO MATCH BRACE INCLINATION WP MIN 1" 4"
