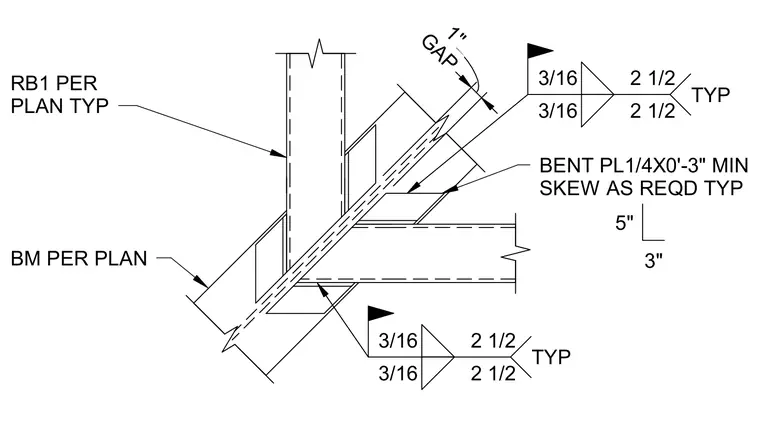

This structural connection detail shows a beam framing into an RB1 member per plan with a one-inch gap. Bent plates measuring one-quarter inch by three inches minimum are provided with skew as required typically. Three-sixteenth-inch fillet welds secure the connection with two-and-a-half-inch dimensions typically applied.
BM PER PLAN RB1 PER PLAN TYP BENT PL1/4X0'-3" MIN SKEW AS REQD TYP 5" 3" 3/16 2 1/2 3/16 2 1/2 TYP 3/16 2 1/2 3/16 2 1/2 TYP GAP 1"
