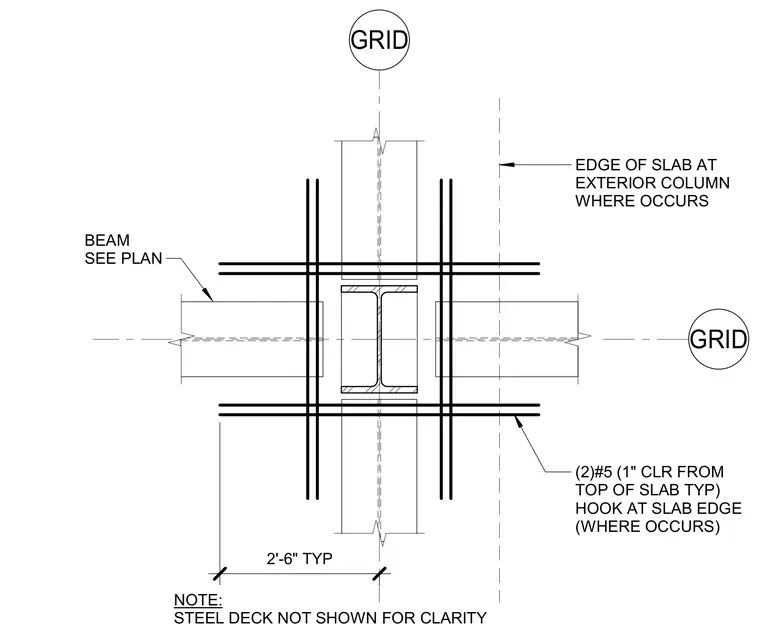

Reinforcing bars span across the column line with two number 5 bars placed with a one-inch clear distance from the top of the slab typically. The bars feature hooks at the slab edge where applicable, extending two feet six inches from the grid intersection. The structural steel column and framing beams are positioned on grid lines, with the steel deck omitted for clarity.
NOTE: STEEL DECK NOT SHOWN FOR CLARITY BEAM SEE PLAN (2)#5 (1" CLR FROM TOP OF SLAB TYP) HOOK AT SLAB EDGE (WHERE OCCURS) EDGE OF SLAB AT EXTERIOR COLUMN WHERE OCCURS 2'-6" TYP GRID GRID
