A full-height S162-54 box jamb connects to intersecting cold-formed steel shear wall framing using two rows of number 10 self-tapping sheet metal screws spaced at twelve inches on center. The assembly accommodates standard shear wall construction per plan and schedule with specified minimum clearances.

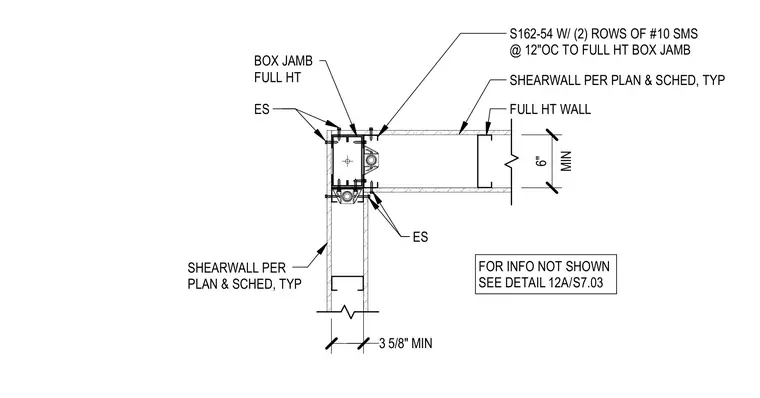

ES SHEARWALL PER PLAN & SCHED, TYP ES SHEARWALL PER PLAN & SCHED, TYP 3 5/8" MIN MIN 6" BOX JAMB FULL HT S162-54 W/ (2) ROWS OF #10 SMS @ 12"OC TO FULL HT BOX JAMB FULL HT WALL FOR INFO NOT SHOWN SEE DETAIL / 12A S7.03
