Structural · S-WE4HW

Bolted Beam to Column Braced Frame Connection

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

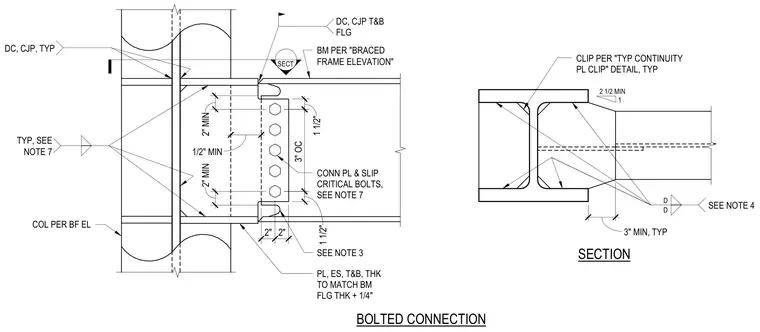

A wide-flange beam connects to a wide-flange column using a vertical connection plate secured with slip-critical bolts spaced at three inches on center. The top and bottom beam flanges feature complete joint penetration welds and continuity plates matching the beam flange thickness plus one quarter inch. Additional clips and stiffeners are detailed per project notes and referenced elevations. The structural steel assembly provides rigid moment and braced frame load transfer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
