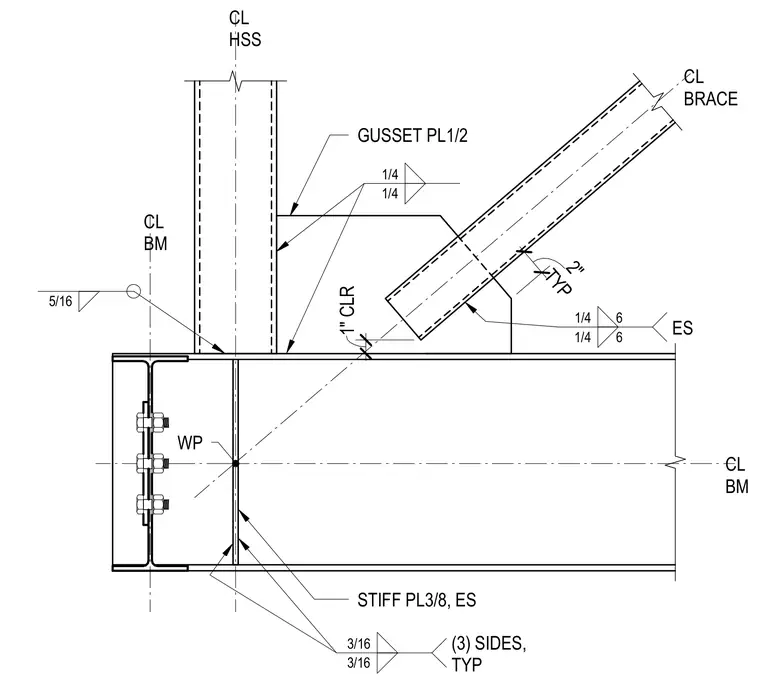

A diagonal brace connects to a steel beam and hollow structural section column via a one-half-inch thick gusset plate. Three-eighths-inch thick stiffener plates are welded to each side of the beam web with three-sixteenths-inch fillet welds on three sides typical. The diagonal brace maintains a one-inch clearance from the top flange of the beam. A five-sixteenths-inch fillet weld secures the beam connection at the column centerline working point.
CL BM WP CL HSS CL BRACE CL BM 1" CLR STIFF PL3/8, ES 1/4 1/4 ES 6 6 1/4 1/4 (3) SIDES, TYP 3/16 3/16 TYP 2" GUSSET PL1/2 5/16
