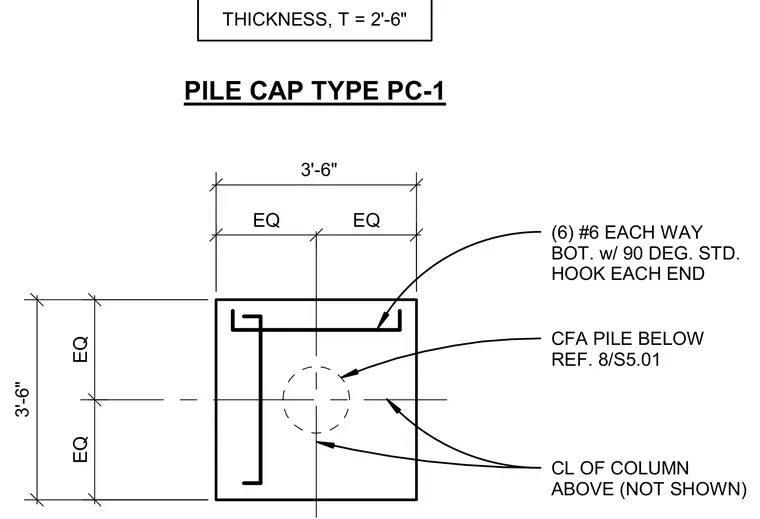

A concrete pile cap measuring two feet six inches in thickness and three feet six inches square is supported by a continuous flight auger pile below. The bottom mat features six number six reinforcing bars each way with ninety-degree standard hooks at each end. The center line aligns with the column above.
THICKNESS, T = 2'-6" PILE CAP TYPE PC-1 "A " EQ EQ "B" EQ EQ CL OF COLUMN ABOVE (NOT SHOWN) (6) #6 EACH WAY BOT. w/ 90 DEG. STD. HOOK EACH END CFA PILE BELOW REF. 8/S5.01 3'-6" 3'-6"
