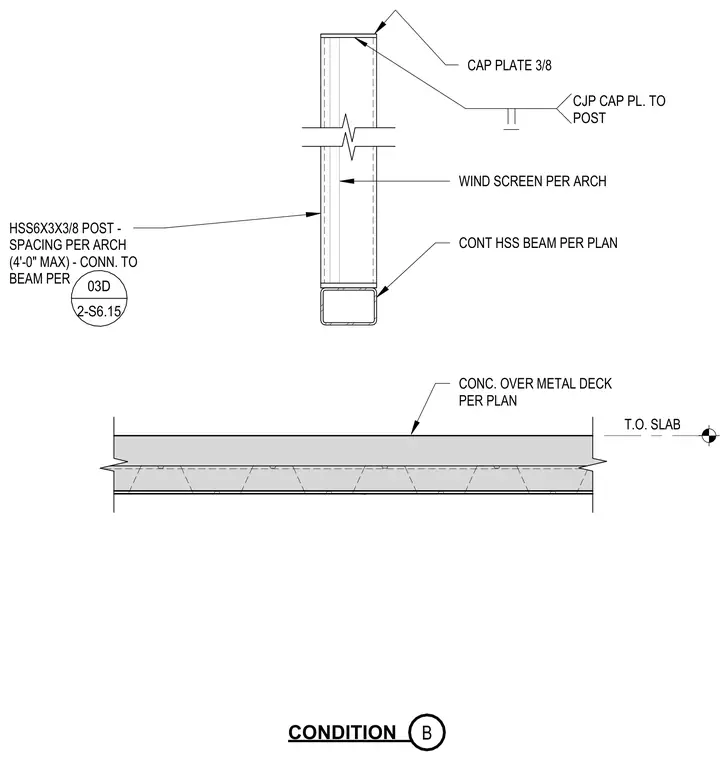

A hollow structural section post is supported by a continuous hollow structural section beam over a concrete slab on metal deck. The hollow structural section post is connected to the continuous hollow structural section beam, which is sized per plan. A three-eighths-inch cap plate is welded to the top of the post with a complete joint penetration weld. The hollow structural section post is spaced per architectural requirements at a maximum of four feet and supports a wind screen.
CONDITION HSS6X3X3/8 POST - SPACING PER ARCH (4'-0" MAX) - CONN. TO BEAM PER CONT HSS BEAM PER PLAN T.O. SLAB CONC. OVER METAL DECK PER PLAN CAP PLATE 3/8 CJP CAP PL. TO POST B 03D 2-S6.15 WIND SCREEN PER ARCH
