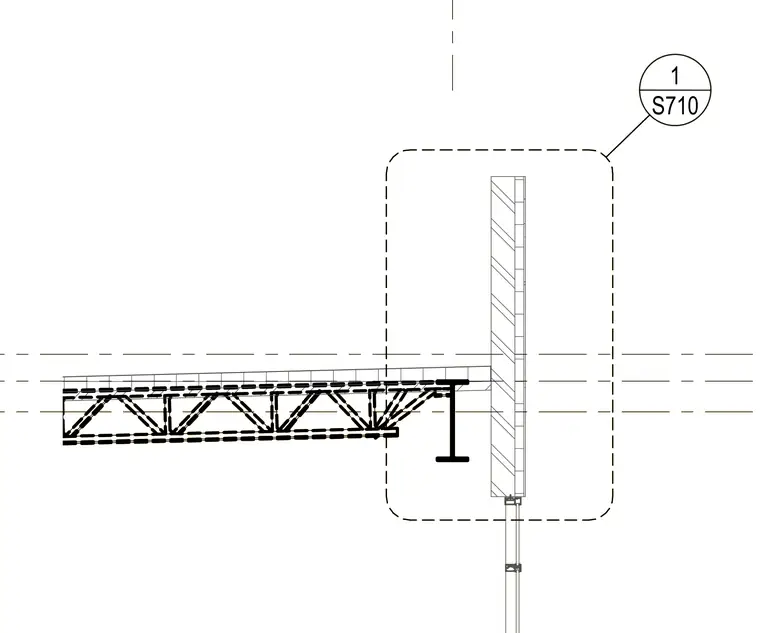

An open web steel joist frames into a wide flange structural steel beam adjacent to an exterior wall assembly. The joist seats on the top flange of the support beam. A dashed boundary box highlights the joist end bearing and connection zone.
