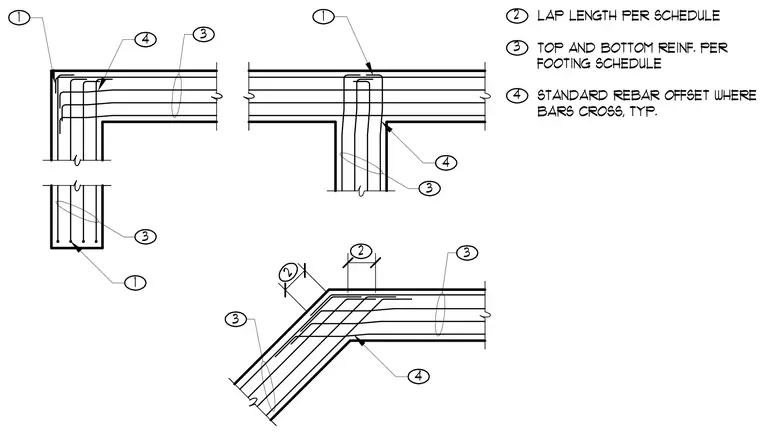

Footing reinforcing details include lap lengths per schedule at splices, top and bottom rebar per footing schedule, and standard rebar offsets where reinforcing bars cross. The layout incorporates corner conditions, intersection junctions, and angle changes for continuous concrete footings.
3 2 LAP LENGTH PER SCHEDULE 3 TOP AND BOTTOM REINF. PER FOOTING SCHEDULE 4 STANDARD REBAR OFFSET WHERE BARS CROSS, TYP. 4 1 1 3 3 3 4 3 2 2 1 4
