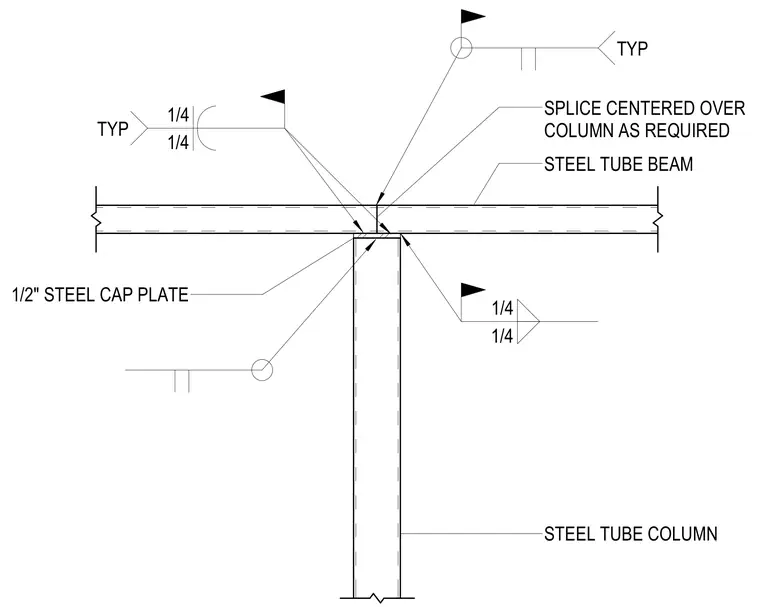

A steel tube beam bears on a vertical steel tube column through a half-inch steel cap plate. The joint is secured with typical quarter-inch fillet welds around the bearing interface. A splice is centered over the column as required, with adjacent beam segments joined by typical quarter-inch welds.
STEEL TUBE BEAM STEEL TUBE COLUMN 1/4 1/4 1/4 1/4 TYP 1/2" STEEL CAP PLATE SPLICE CENTERED OVER COLUMN AS REQUIRED TYP
