Structural · S-WDCV4

Brace to Column Flange Connection

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection

About this detail

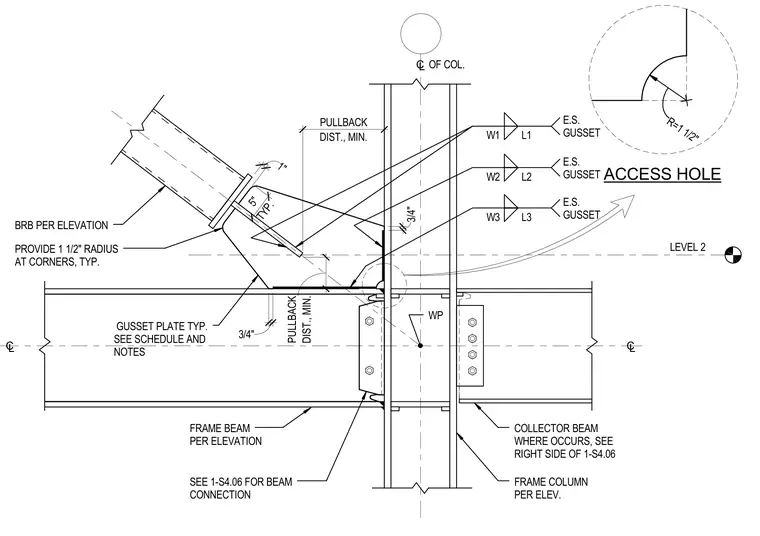

A buckling-restrained brace frames into a steel column flange and beam connection utilizing a gusset plate welded with designations W1, W2, and W3 on each side of the gusset. The gusset plate features a one-inch minimum pullback distance and a five-inch typical dimension from the brace interface. A beam connection access hole with a one-and-one-half-inch radius is provided at the corners typical, with reference made to sheet 1-S4.06 for the beam connection details. A collector beam occurs at the right side per elevation, and a work point is established at the intersection of centerlines.
