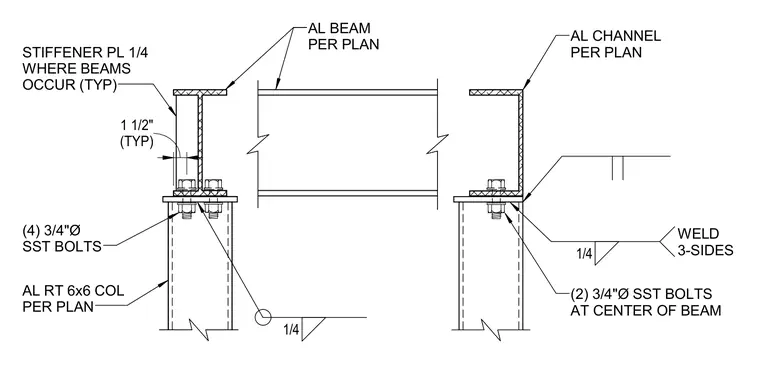

An aluminum beam and an aluminum channel bear on an aluminum rectangular tube column sized per plan. The beam is secured with four three-quarter-inch diameter stainless steel bolts and features a one-quarter-inch stiffener plate where beams occur. The channel is fastened with two three-quarter-inch diameter stainless steel bolts at the center of the beam. A one-quarter-inch fillet weld applied on three sides connects the assembly components.
AL RT 6x6 COL PER PLAN AL BEAM PER PLAN (2) 3/4"Ø SST BOLTS AT CENTER OF BEAM (4) 3/4"Ø SST BOLTS (TYP) 1 1/2" STIFFENER PL 1/4 WHERE BEAMS OCCUR (TYP) AL CHANNEL PER PLAN 1/4 WELD 3-SIDES 1/4
