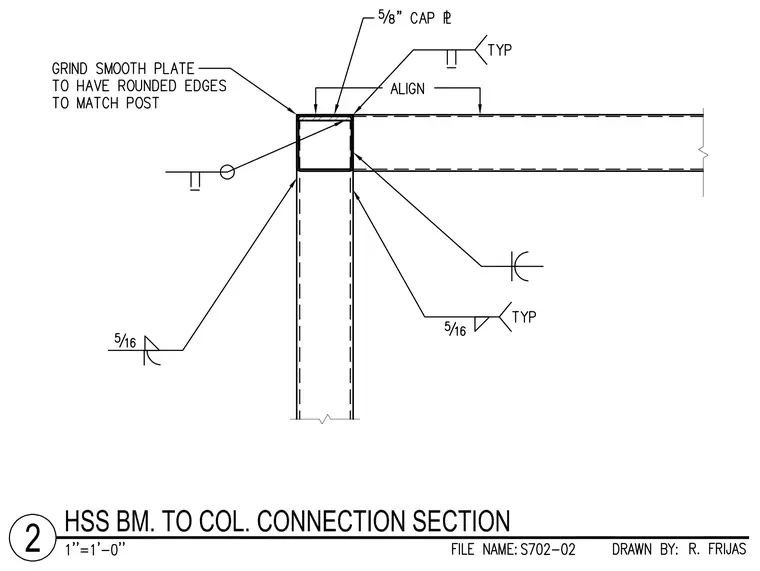

A five-eighths-inch cap plate tops the hollow structural section column and aligns with the connecting HSS beam. Five-sixteenths-inch fillet welds secure the beam and plate assembly. The cap plate edges are ground smooth to match the rounded corners of the supporting post.
