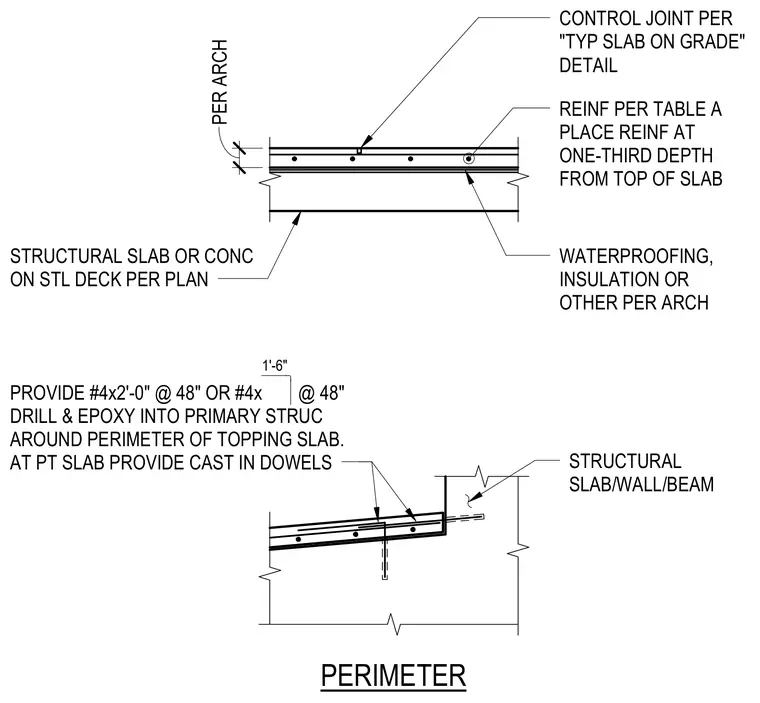

A concrete topping slab connects at its perimeter to a primary structural slab, wall, or beam. Number 4 dowels at two feet zero inches in length are drilled and epoxied at forty-eight inches on center around the perimeter, or cast-in dowels are used at post-tensioned slabs. Reinforcing is placed at one-third the depth from the top of the slab per the structural table, with control joints installed per standard slab-on-grade details. Waterproofing, insulation, and additional architectural layers are applied per the architectural plans over the structural concrete or concrete on steel deck.
PROVIDE #4x2'-0" @ 48" OR #4x @ 48" DRILL & EPOXY INTO PRIMARY STRUC AROUND PERIMETER OF TOPPING SLAB. AT PT SLAB PROVIDE CAST IN DOWELS STRUCTURAL SLAB OR CONC ON STL DECK PER PLAN WATERPROOFING, INSULATION OR OTHER PER ARCH REINF PER TABLE A PLACE REINF AT ONE-THIRD DEPTH FROM TOP OF SLAB CONTROL JOINT PER "TYP SLAB ON GRADE" DETAIL PERIMETER STRUCTURAL SLAB/WALL/BEAM 1'-6" 4" PER ARCH
