A wide-flange column connects to a heavy A572-50 base plate with a thickness of 3 inches, supported on a 2-inch grout layer over a concrete slab. Four 1 3/4-inch diameter A722 threaded reinforcing bars anchor the assembly, secured with matching nuts and A572-50 washer plates measuring 1x4x0'4". The base plate extends as required where a gusset occurs, welded with complete joint penetration demand critical welds at the flange and web. Additional field-welded threaded studs are detailed per schedule alongside an embed plate measuring 3/4x16x1'-4" by others. A base plate schedule provides specific plate sizes ranging from 1 1/4x12x1'-0" to 1 3/4x14x1'-2" for various W10 and W12 column sizes.

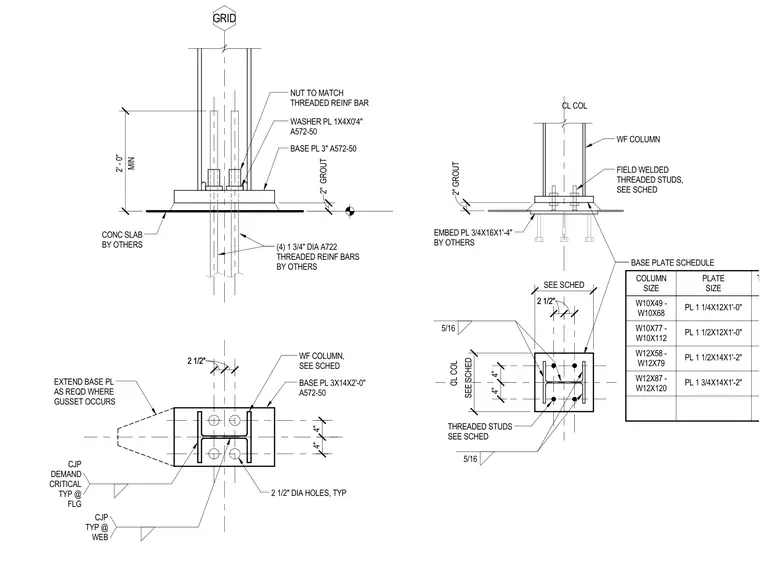

EMBED PL 3/4X16X1'-4" BY OTHERS CL COL CL COL BASE PLATE SCHEDULE 2" GROUT SEE SCHED SEE SCHED 5/16 5/16 2 1/2" 2 1/2" COLUMN SIZE PLATE SIZE PL 1 1/4X12X1'-0" W10X49 - W10X68 PL 1 1/2X12X1'-0" W10X77 - W10X112 PL 1 1/2X14X1'-2" 4" 4" THREADED W12X58 - W12X79 W12X87 - W12X120 PL 1 3/4X14X1'-2" FIELD WELDED THREADED STUDS, SEE SCHED WF COLUMN THREADED STUDS SEE SCHED BASE PL 3X14X2'-0" A572-50 (4) 1 3/4" DIA A722 THREADED REINF BARS BY OTHERS WF COLUMN, SEE SCHED 2" GROUT 4" 4" GRID MIN 2' - 0" 2 1/2" 2 1/2" BASE PL 3" A572-50 WASHER PL 1X4X0'4" A572-50 NUT TO MATCH THREADED REINF BAR 2 1/2" DIA HOLES, TYP CONC SLAB BY OTHERS EXTEND BASE PL AS REQD WHERE GUSSET OCCURS CJP DEMAND CRITICAL TYP @ FLG CJP TYP @ WEB
