This structural connection utilizes a continuous HSS6x4 member featuring a continuous one-inch cut at the center of the near side of the web to allow horizontal drift. Two three-quarter-inch diameter A307 bolts with nuts secure a half-inch bent plate with two-inch vertical slotted holes. The assembly accommodates movement through horizontal slots and precisely dimensioned plate placements along the centerlines.

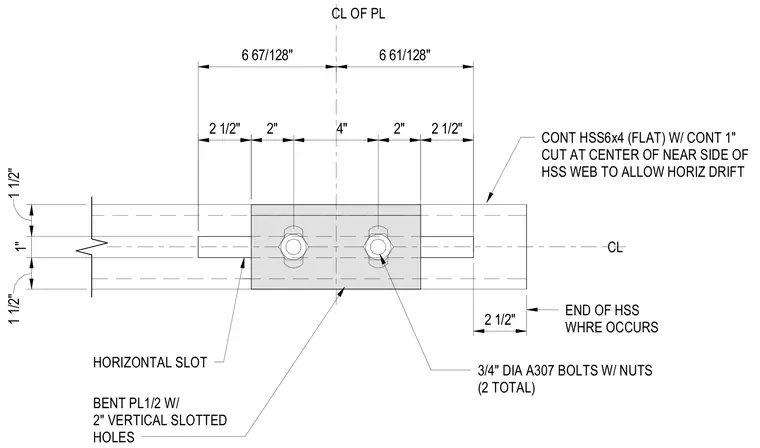

2" 4" 2" 1 1/2" 1" 1 1/2" CL 3/4" DIA A307 BOLTS W/ NUTS (2 TOTAL) BENT PL1/2 W/ 2" VERTICAL SLOTTED HOLES CONT HSS6x4 (FLAT) W/ CONT 1" CUT AT CENTER OF NEAR SIDE OF HSS WEB TO ALLOW HORIZ DRIFT HORIZONTAL SLOT 2 1/2" 2 1/2" 2 1/2" END OF HSS WHRE OCCURS CL OF PL 6 67/128" 6 61/128"
