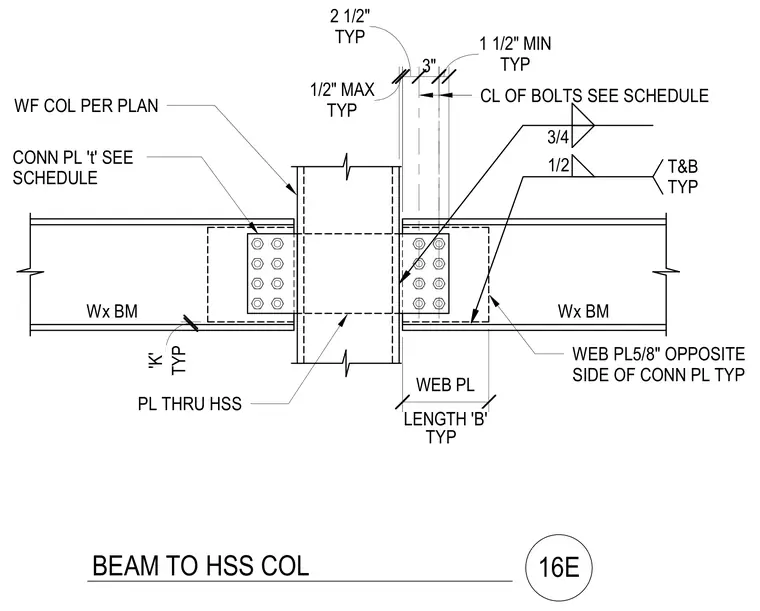

Wide flange beams connect to a hollow structural section column using connection plates and through-plates sized per schedule. A web plate measuring five-eighths of an inch is located on the opposite side of the connection plate. Fillet welds of three-quarters and one-half inch secure the plates to the members. Bolt centerlines and plate thicknesses are detailed according to the engineering schedule, maintaining specified edge distances and clearances.
WF COL PER PLAN CONN PL 't' SEE SCHEDULE CL OF BOLTS SEE SCHEDULE Wx BM T&B TYP 1/2 TYP 1/2" MAX TYP 1 1/2" MIN TYP 2 1/2" 3" 3/4 LENGTH 'B' WEB PL WEB PL5/8" OPPOSITE SIDE OF CONN PL TYP Wx BM TYP PL THRU HSS TYP 'K' BEAM TO HSS COL 16E
