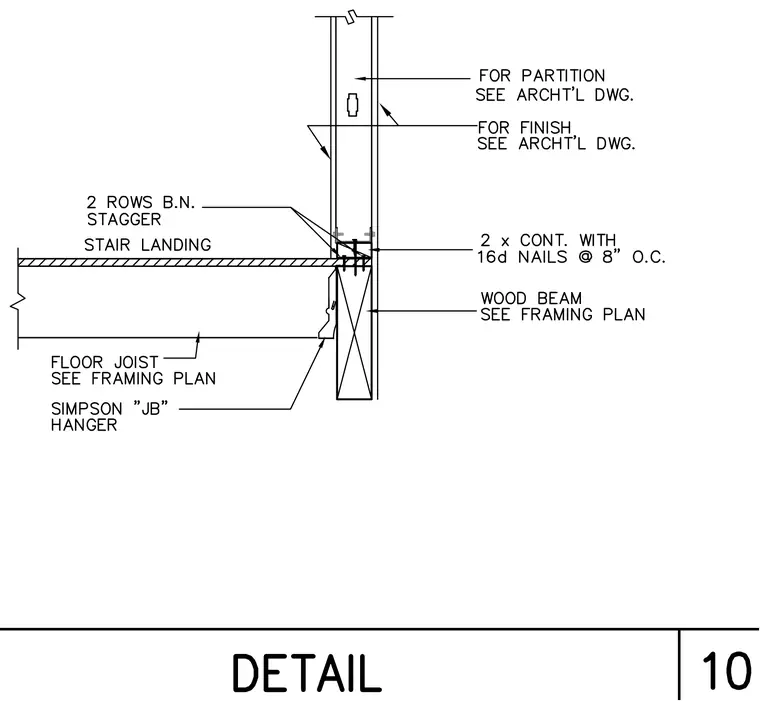

A floor joist connects to a wood beam using a Simpson JB joist hanger, supporting the stair landing. A continuous double wood member fastened with 16d nails at eight inches on center sits atop the beam. A partition wall extends upward from the landing assembly with finishes and framing coordinated per architectural drawings. Two rows of bolts or nails are staggered at the base connection.
