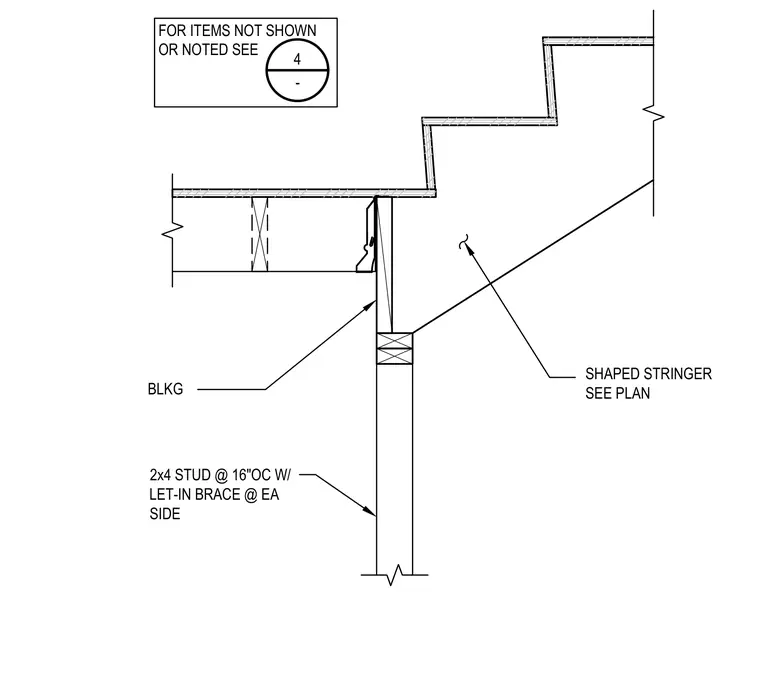

A shaped wood stair stringer frames into a wood stud landing wall with blocking. The landing wall consists of two-by-four studs spaced at sixteen inches on center with let-in bracing at each side. Additional components and requirements are sized per plan.
SHAPED STRINGER SEE PLAN FOR ITEMS NOT SHOWN OR NOTED SEE 4 - BLKG 2x4 STUD @ 16"OC W/ LET-IN BRACE @ EA SIDE
