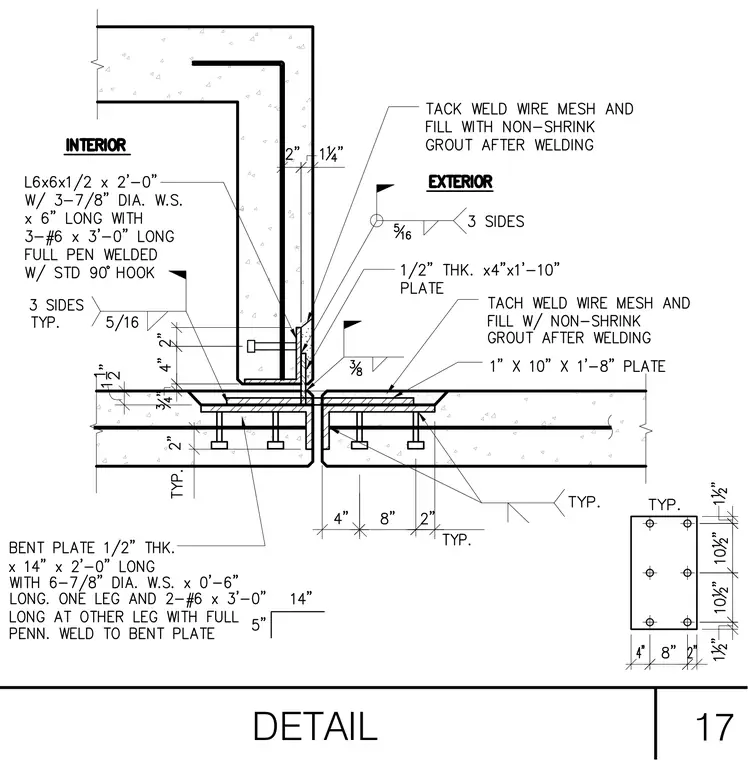

Precast concrete panels are connected using a half-inch thick bent plate measuring fourteen inches by two feet zero inches long with six seven-eighth-inch diameter welded studs and two number six by three-foot-zero-inch long reinforcing bars. An L6x6x1/2 angle two feet zero inches long features three seven-eighth-inch diameter welded studs and three number six by three-foot-zero-inch long bars with standard ninety-degree hooks fully penetration welded on three sides. A half-inch thick plate measuring four inches by one foot ten inches is welded with five-sixteenth-inch welds on three sides, and a one-inch by ten-inch by one-foot-eight-inch plate is welded with three-eighth-inch welds. Wire mesh is tack-welded and voids are filled with non-shrink grout after welding.
