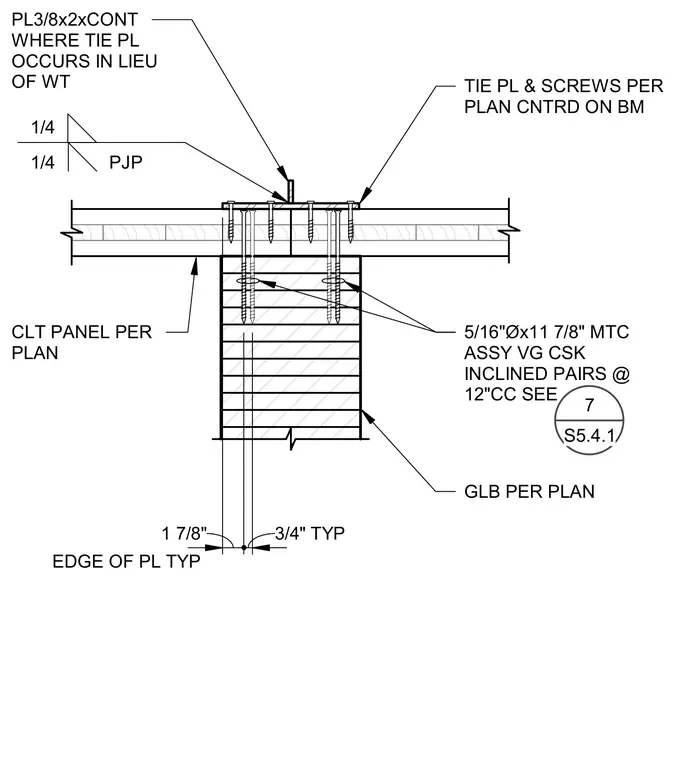

Cross-laminated timber panels bear on a glued laminated timber beam per plan and connect with inclined pairs of 5/16-inch diameter by 11-7/8-inch mass timber connector screw assemblies countersunk at 12 inches on center. A continuous 3/8-inch by 2-inch tie plate with screws is centered on the beam and tied with a 1/4-inch partial joint penetration weld where a tie plate occurs in lieu of a structural tee.
CLT PANEL PER PLAN GLB PER PLAN 1 7/8" 3/4" TYP EDGE OF PL TYP 1/4 PJP 1/4 PL3/8x2xCONT WHERE TIE PL OCCURS IN LIEU OF WT TIE PL & SCREWS PER PLAN CNTRD ON BM 5/16"Øx11 7/8" MTC ASSY VG CSK INCLINED PAIRS @ 12"CC SEE 7 S5.4.1
