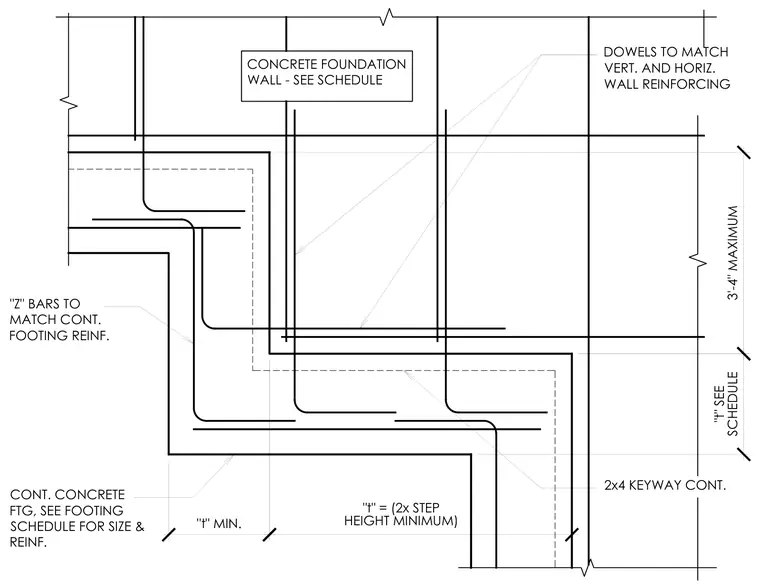

A continuous concrete footing supports a stepped concrete foundation wall sized per schedule. Vertical and horizontal wall reinforcing ties into the footing via minimum dowels matching the wall size. Continuous Z bars match the footing reinforcement. A continuous two-by-four keyway is formed at the wall-to-footing joint. Step height minimums and maximum dimensions govern the stepped configuration.
3'-4" MAXIMUM "t" SEE SCHEDULE "t" = (2x STEP HEIGHT MINIMUM) "t" MIN. DOWELS TO MATCH VERT. AND HORIZ. WALL REINFORCING 2x4 KEYWAY CONT. "Z" BARS TO MATCH CONT. FOOTING REINF. CONT. CONCRETE FTG, SEE FOOTING SCHEDULE FOR SIZE & REINF. CONCRETE FOUNDATION WALL - SEE SCHEDULE
