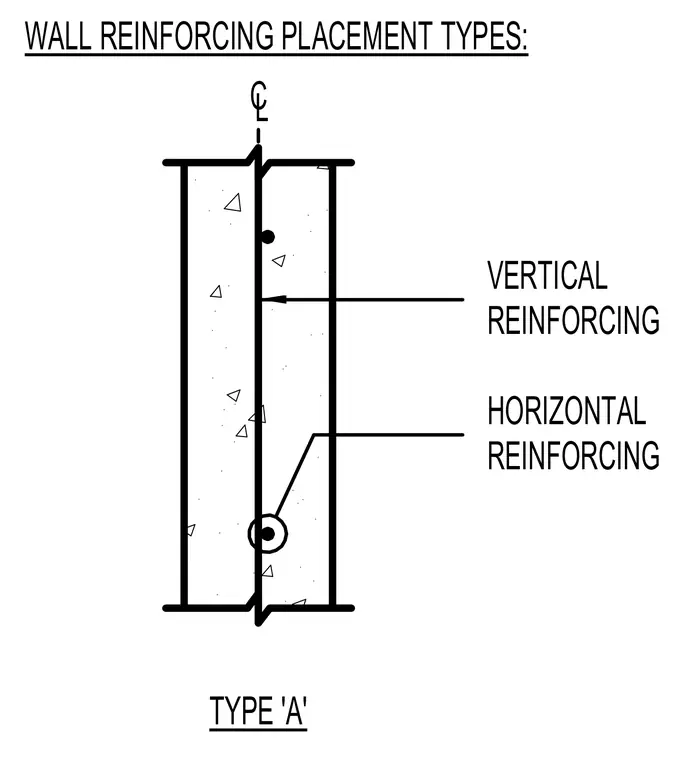

Concrete wall reinforcing placement Type A showing vertical reinforcing bars and horizontal reinforcing bars positioned within the concrete wall section relative to the centerline.
L C VERTICAL REINFORCING HORIZONTAL TYPE 'A' REINFORCING WALL REINFORCING PLACEMENT TYPES:
