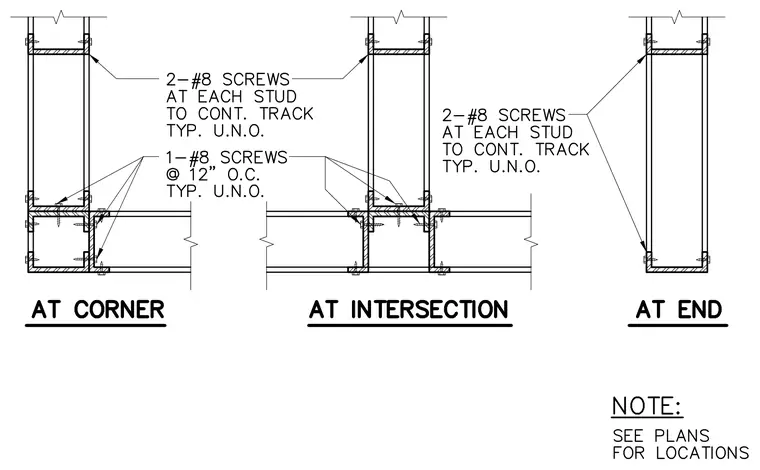

Cold-formed metal stud framing details showing corner, intersection, and end configurations with continuous tracks. Two number eight screws secure each stud to the continuous track typically unless noted otherwise. One number eight screw spaced at twelve inches on center secures framing components typically unless noted otherwise.
