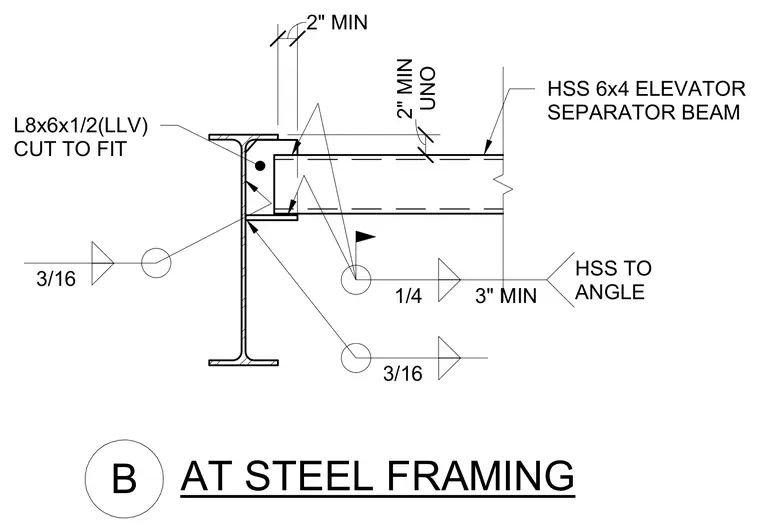

An HSS 6x4 elevator separator beam connects to a wide flange steel framing member using an L8x6x1/2 angle cut to fit with long legs vertical. The connection utilizes a 3/16 inch fillet weld for the angle to the support and a 1/4 inch fillet weld for the HSS to the angle. Minimum clearances of 2 inches and 3 inches are specified, with a 2-inch minimum dimension noted unless otherwise specified.
HSS 6x4 ELEVATOR SEPARATOR BEAM AT STEEL FRAMING B L8x6x1/2(LLV) CUT TO FIT 2" MIN UNO 2" MIN 1/4 3" MIN HSS TO ANGLE 3/16 3/16
