Structural · S-WBVB4

Standard Pipe X Flange Width

Materials

Connections

About this detail

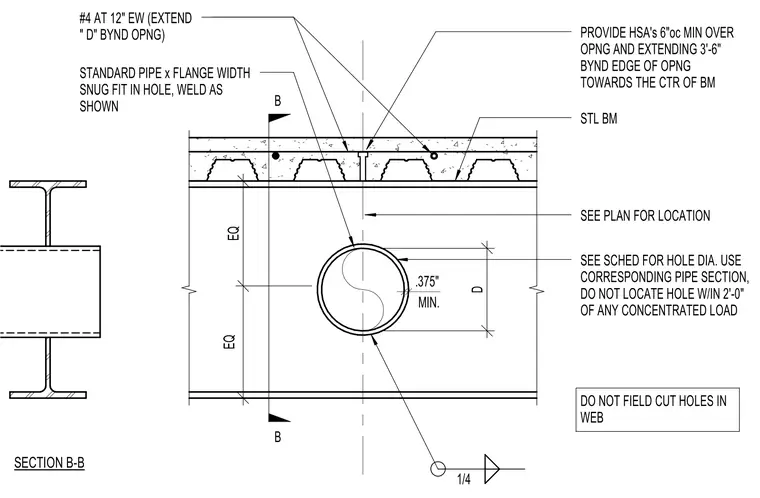

A steel beam web opening detail featuring a circular cutout reinforced with a standard pipe matching the flange width, maintaining a minimum thickness of 0.375 inches with a snug fit and welded connection. Holes must not be field-cut in the web, must use the corresponding pipe section from the schedule, and cannot be located within 2 feet of any concentrated load. Concrete deck reinforcement includes number 4 bars at 12 inches each way, extending past the opening, alongside heading shear anchors spaced at 6 inches on center minimum over the opening and extending 3 feet 6 inches beyond the edge toward the center of the beam.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
