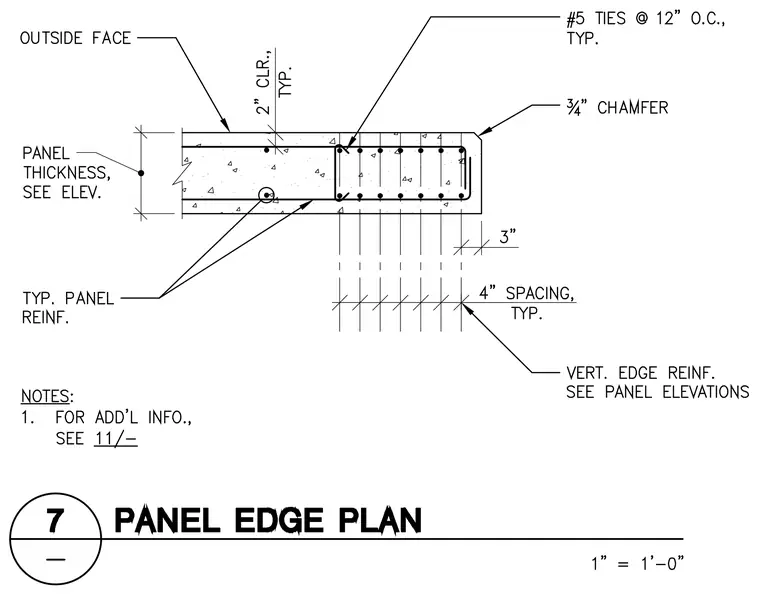

Edge reinforcement and geometry of a precast concrete wall panel. The panel features a three-quarter-inch chamfer at the outside edge with two inches of typical concrete clearance. Vertical edge reinforcement is spaced at four inches typical, supplemented by number five ties at twelve inches on center. The panel thickness is specified per the elevations, incorporating typical panel reinforcement throughout.
