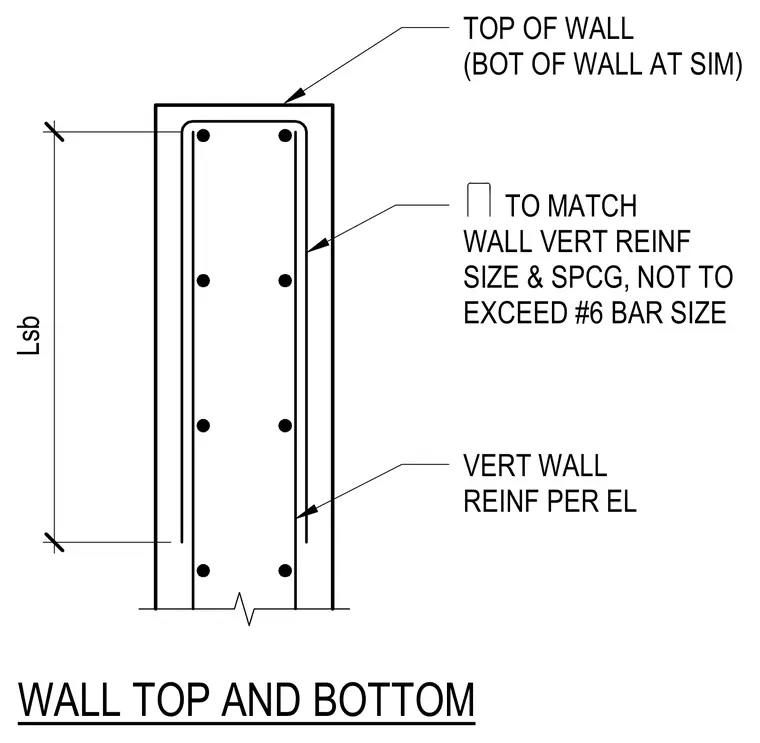

Top and bottom termination of a concrete wall with vertical wall reinforcement and hooked dowels. The vertical wall reinforcement matches the elevation requirements with size and spacing not to exceed a number six bar size. Hooked bars match the vertical wall reinforcement size and spacing with a development length of Lsb. The bottom of the wall mirrors the top condition symmetrically.
27 7/8" WALL TOP AND BOTTOM TOP OF WALL (BOT OF WALL AT SIM) TO MATCH WALL VERT REINF SIZE & SPCG, NOT TO EXCEED #6 BAR SIZE VERT WALL REINF PER EL Lsb
