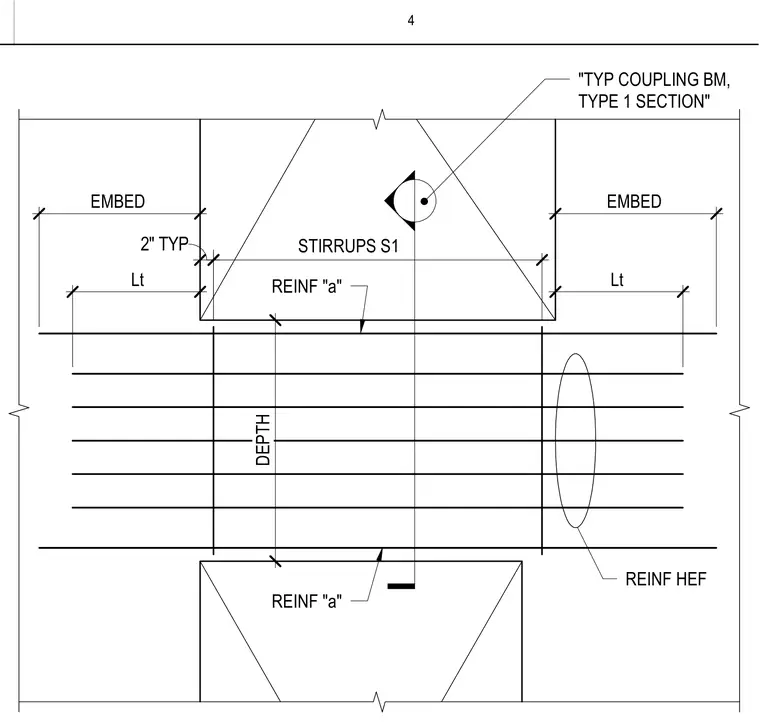

This structural detail shows a reinforced concrete coupling beam section with continuous longitudinal reinforcement, embedment lengths labeled as Lt, and typical stirrups S1. The beam features specified depth and reinforcement sizes including reinforcing bars "a" and HEF reinforcement. Dimension lines indicate a typical two-inch clearance and embedment zones at the support boundaries.
REINF HEF REINF "a" REINF "a" 24" DEPTH 19" 19" 24" "TYP COUPLING BM, TYPE 1 SECTION" 2" TYP EMBED EMBED Lt Lt 49" STIRRUPS S1 4
