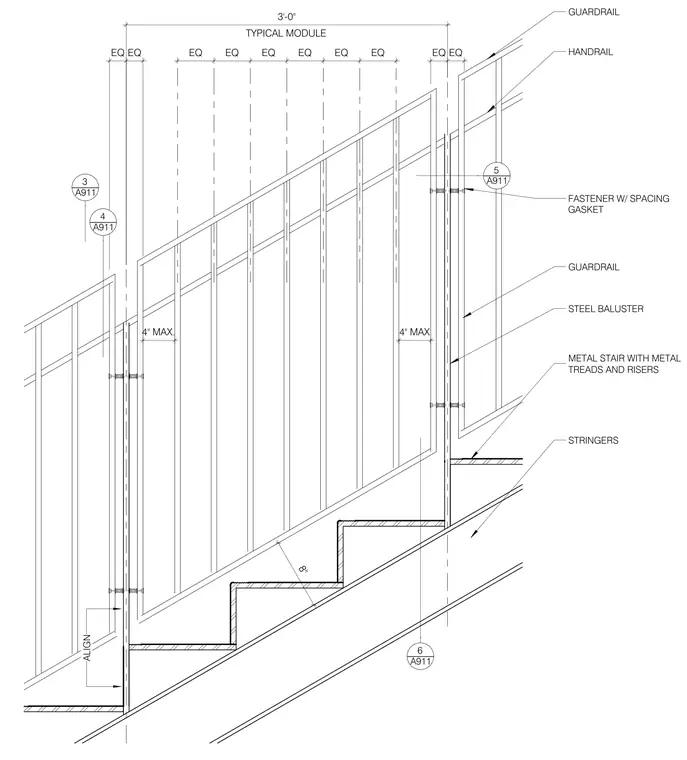

An axonometric detail shows a typical metal stair guardrail panel featuring steel balusters spaced at equal intervals within a three-foot module. A handrail and guardrail mount to the metal stair stringers and treads using fasteners with spacing gaskets. Vertical balusters maintain a maximum four-inch spacing to meet safety code requirements. The guardrail panels align along the stringers of the metal stair with metal treads and risers.
ALIGN TYPICAL MODULE 3'-0" 4" MAX. EQ EQ EQ EQ EQ EQ 4" MAX EQ EQ EQ EQ 6 A911 _____ 5 A911 _____ 4 A911 _____ 3 A911 _____ STEEL BALUSTER HANDRAIL GUARDRAIL STRINGERS METAL STAIR WITH METAL TREADS AND RISERS GUARDRAIL 8" FASTENER W/ SPACING GASKET
