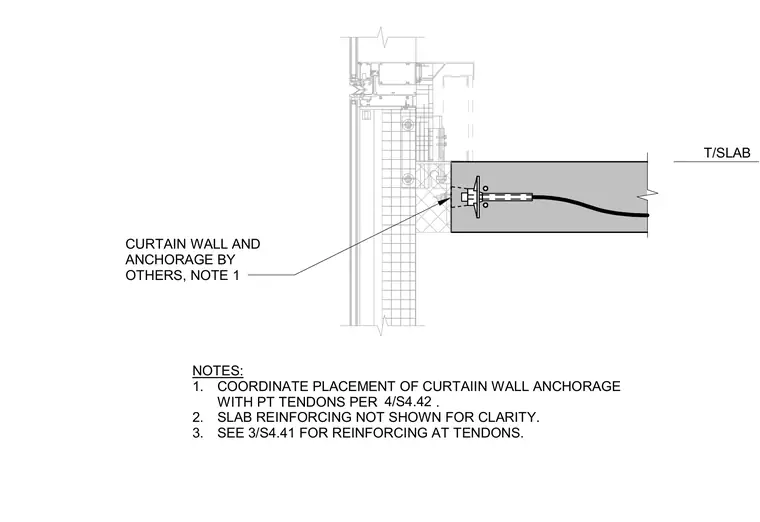

The interface between a curtain wall anchorage and a post-tensioned concrete slab edge. Placement of the curtain wall anchorage must be coordinated with post-tensioned tendons per sheet 4/S4.42. Slab reinforcing is omitted for clarity, and additional reinforcing at tendons is referenced on sheet 3/S4.41. The curtain wall and its associated anchorage are provided by others.
T/SLAB CURTAIN WALL AND ANCHORAGE BY OTHERS, NOTE 1 NOTES: 1. COORDINATE PLACEMENT OF CURTAIIN WALL ANCHORAGE WITH PT TENDONS PER . 2. SLAB REINFORCING NOT SHOWN FOR CLARITY. 3. SEE 3/S4.41 FOR REINFORCING AT TENDONS. 4/S4.42 3/S4.41
