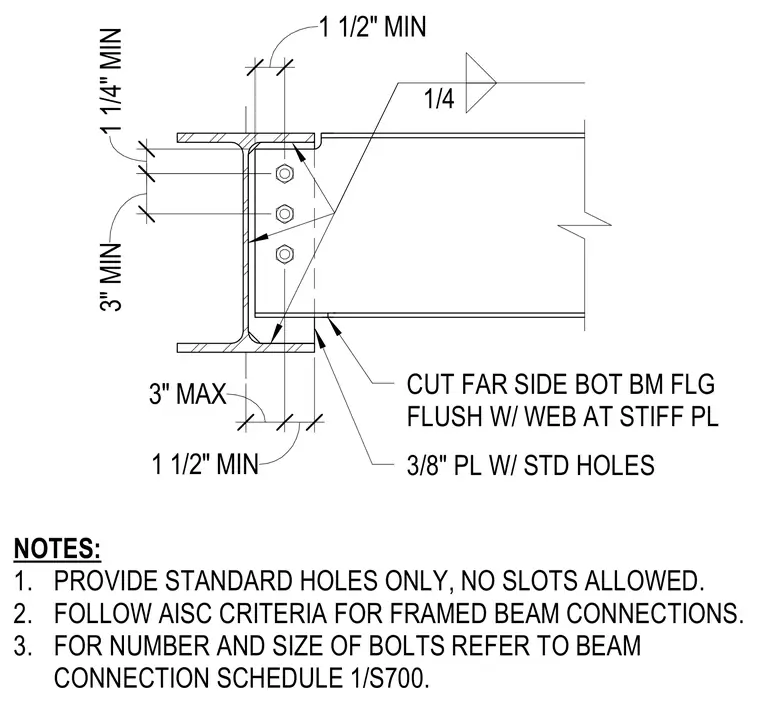

A steel beam connects to a supporting column web using a three-eighths-inch thick stiffener plate with standard holes. The bottom beam flange is cut on the far side to sit flush with the web at the stiffener plate. A quarter-inch fillet weld secures the assembly according to American Institute of Steel Construction criteria. Standard holes are required with no slots allowed, while bolt quantity and size are referenced from the structural schedule.
3" MAX 1 1/2" MIN 3" MIN 1 1/4" MIN 1/4 CUT FAR SIDE BOT BM FLG FLUSH W/ WEB AT STIFF PL 3/8" PL W/ STD HOLES NOTES: 1. PROVIDE STANDARD HOLES ONLY, NO SLOTS ALLOWED. 2. FOLLOW AISC CRITERIA FOR FRAMED BEAM CONNECTIONS. 3. FOR NUMBER AND SIZE OF BOLTS REFER TO BEAM CONNECTION SCHEDULE 1/S700. 1 1/2" MIN
