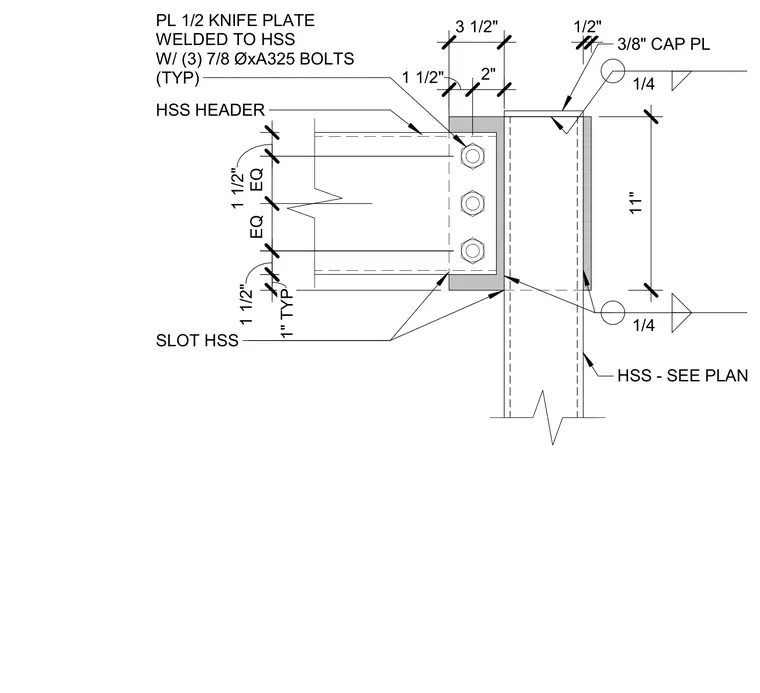

An HSS stair header frames into a vertical HSS post via a one-half-inch thick knife plate slotted into the header and welded to the post. The connection is secured with three seven-eighths-inch diameter A325 bolts spaced symmetrically with equal intervals. A three-eighths-inch cap plate is welded to the top of the HSS post with quarter-inch fillet welds. The HSS post size is specified per structural plans.
EQ EQ 11" 1 1/2" 2" 3 1/2" 3/8" CAP PL SLOT HSS PL 1/2 KNIFE PLATE WELDED TO HSS W/ (3) 7/8 ØxA325 BOLTS (TYP) HSS - SEE PLAN HSS HEADER 1/4 1/4 1/2" 1" TYP 1 1/2" 1 1/2"
