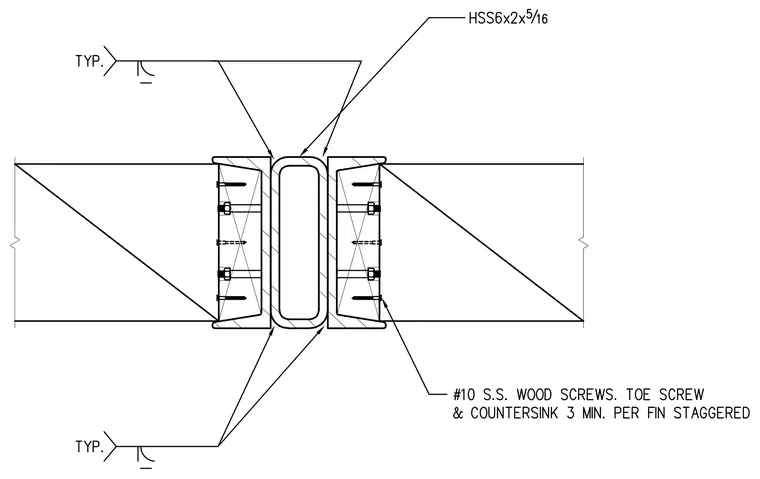

An interior trellis wood beam framing connection features a central HSS 6x2x5/16 hollow structural section column flanked by wood members. The wood beams are secured with number 10 stainless steel wood screws, toe-screwed and countersunk with three minimum per fin staggered. Fillet welds are typically applied at the top and bottom fin connections to the HSS column.
